Melody Generator Ics

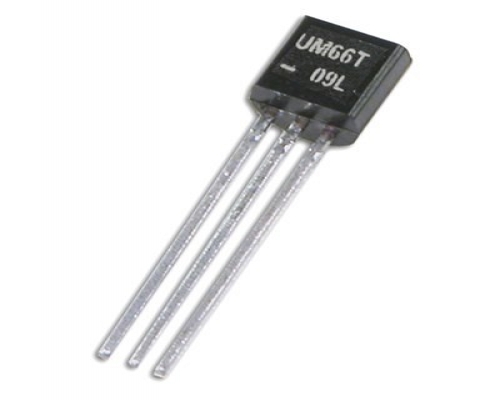

Low cost melody generator ICs in TO-92/DIL 8 package, for use in a wide range of circuit projects. Built in oscillator circuit minimises additional component requirement, and a simple circuit can be constructed with only a 3V battery and a piezo buzzer.
Power supply is 1.5V to 4.5V. Range of melodies as listed below.
RoHS compliant
Circuit Diagrams
View Specifications
Item number
Data Sheet
Product Name
Price
Add to Basket
UM3561
Melody IC UM3561 - 3 Sirens & Machinegun
£3.48
Item number:
UM3561
Description:
Melody IC UM3561 - 3 Sirens & Machinegun
Price
£3.48
Data Sheet:
UM66T-08S
Happy birthday Melody IC M66T-08S
£0.98
Item number:
UM66T-08S
Description:
Happy birthday Melody IC M66T-08S
Price
£0.98
Data Sheet:
UM66T-19L
Melody IC M66T-19L - Für Elise
£1.13
Item number:
UM66T-19L
Description:
Melody IC M66T-19L - Für Elise
Price
£1.13
Data Sheet:
UM66T-68L
Melody IC M66T-68L - Small World
£0.98
Item number:
UM66T-68L
Description:
Melody IC M66T-68L - Small World
Price
£0.98
Data Sheet:
Specifications
Item number:
Package:
Description:
UM66T-08S
TO-92
'Happy Birthday'
UM66T-19L
TO-92
Für Elise
UM66T-68L
TO-92
Small World
UM3561
DIL 8
Police/Fire/Ambulance Sirens & Machine gun
Item number:
UM66T-08S
Package:
TO-92
Description:
'Happy Birthday'
Item number:
UM66T-19L
Package:
TO-92
Description:
Für Elise
Item number:
UM66T-68L
Package:
TO-92
Description:
Small World
Item number:
UM3561
Package:
DIL 8
Description:
Police/Fire/Ambulance Sirens & Machine gun
Circuit Diagrams
Circuit diagrams for melody circuits using UM66T-19L, UM66T-08S and UM66T-68L

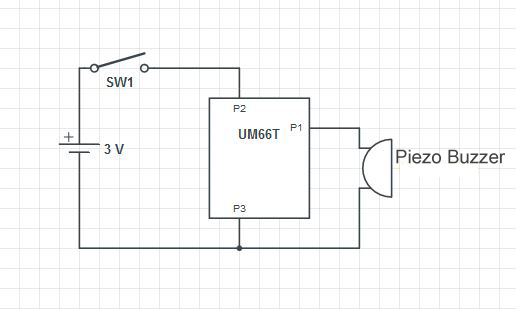

Circuit constructed with a piezo buzzer

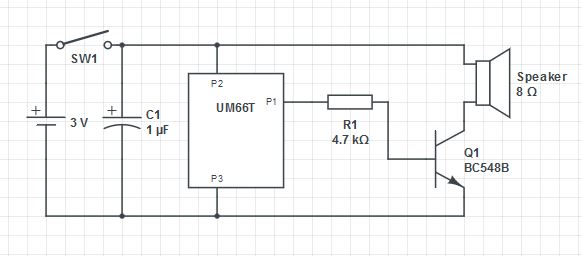

Circuit constructed with a speaker
